MRO shop improves visibility with LED upgrade

Manufacturer uses display-ready, shared half pallets to eliminate product damage and customer complaints.

  By ·

Since 1956, Duncan Aviation has grown to become the world’s largest privately owned business jet support facility. With nearly 40 locations in the United States, the company provides aircraft acquisition and sales, airframe and engine maintenance, avionics installations, interior refurbishment and customization, and instrument repairs.

Its Battle Creek, Mich., site is an eight-hangar, full-service MRO facility supporting the needs of government and business operators around the world. After upgrading to LED lights, the facility has improved visibility and safety while significantly reducing maintenance and energy expenses.

Originally lit with 1,000W metal halide fixtures, the hangars suffered a visibility problem. With just 45 to 50 footcandles on the ground, technicians often had to use headlamps to see clearly. The lights tended to yellow with age and were expensive to operate. In Hangar 4, a paint spray facility, the challenge was even more pronounced. Because there were no Class I Division 1 certified metal halides available, the fixtures were mounted above a piece of suspended Plexiglas, sealed off from any paint fumes and spray. The combination of poor light quality, deteriorating output and overspray on the Plexiglas shield created very poor visibility.

Lighting maintenance was also becoming a chore. The metal halides required new bulbs every 14 to 15 months. With nearly 50 fixtures per hangar, that meant the company’s electrician was changing bulbs out once or twice a month in each building.

The new high-output, 60,000-lumen high-bay LED fixtures (Dialight) draw 480W per fixture, cutting energy consumption by 44% while providing the perfect form factor to mount flush into the existing metal halide recessed holes in the ceiling. As an added bonus, each fixture has a 10-year warranty.

“We just fell in love with the quality of light,” says Ryan Herbstreith, facility services manager. “It’s absolutely amazing, like a night and day difference. The guys love it, and they want to know when we’re going to replace the lights in Hangar 3 and all the other hangars.”

Light readings are now topping 105 to 115 footcandles—at least double the light efficacy on the ground—while using fewer watts per fixture. Because they no longer have to worry about changing out light bulbs every few weeks, they’ve been able to eliminate the cost of ordering bulbs by the case and the time spent changing them—about a $2,300 annual savings.

“Our paint department especially loves it because it’s a more natural light,” Herbstreith said. “They want to do a lot more of their detail work in Hangar 2 because the light is so crisp, and it makes new paint just really pop and looks amazing.” Because of the success with the upgrades in Hangars 2, 4 and 8, Duncan Aviation plans to upgrade Hangar 3 with 49 new fixtures, followed by two more hangars as soon as possible.

Link to the full case study by Dialight

What's Related in LED

Attachable Forklift Industrial Zone Lights
Illuminate path ahead of forklifts for enhanced safety

J Series high-efficiency LED lamp
Illuminate harsh environments with fan-less retrofit lamp

MRO shop improves visibility with LED upgrade
Manufacturer uses display-ready, shared half pallets to eliminate product damage and customer complaints.

LED Drop Light/Task Light
LED drop light with daisy chain connections

New packaging plant’s lighting pays for itself within a year
Manufacturer cuts energy consumption and maintenance disruptions with LEDs.

More LED

Related Topics

Dialight   Energy   LED   All topics

About the Author
Josh Bond, Senior Editor
Josh Bond is Senior Editor for Modern, and was formerly Modern’s lift truck columnist and associate editor. He has a degree in Journalism from Keene State College and has studied business management at Franklin Pierce University.
Latest products
3/8” Super Air Wipe
Super Air Wipe dries, cools & cleans small diameters.

Momentum Warehouse Execution System
Momentum™ warehouse execution system (WES) by Honeywell Intelligrated is a feature-rich software platform built to address the escalating…

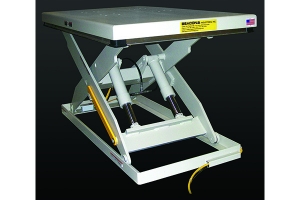

Beacon Hydraulic Lift Table Provides OEM Equipment Integration
